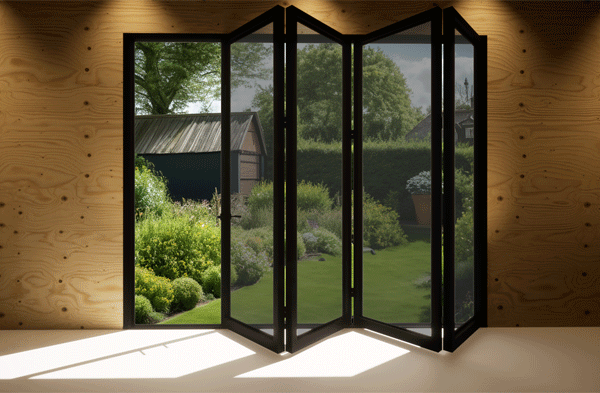

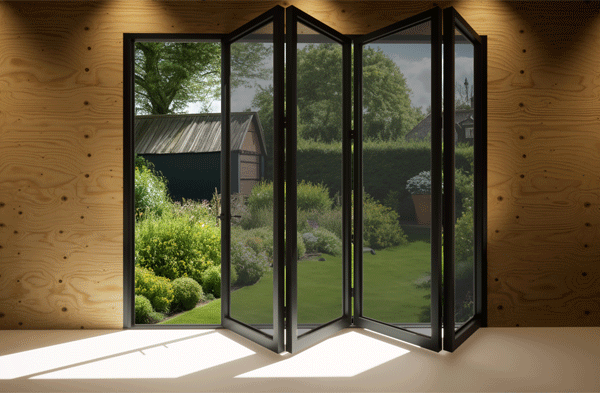

Image of Bi-fold Plus Image of Bi-fold Plus Image of Bi-fold Plus Black render of Bi-fold Plus Grey render of Bi-fold Plus White render of Bi-fold Plus
Selection image of Bi-fold Plus Selection image of Bi-fold Plus Selection image of Bi-fold Plus

BI-FOLD PLUS

Colours
Colours
Technical Details

Click here to check out more in-depth specifications and our PDF for this product.

BI-FOLD PLUS
DOWNLOAD PDF

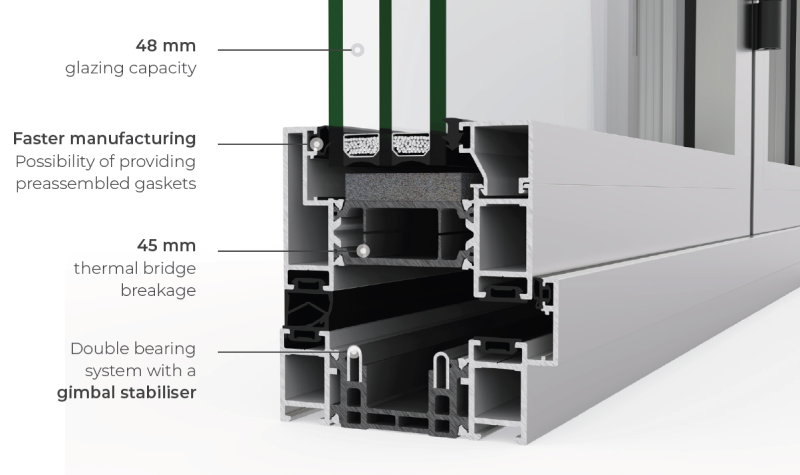

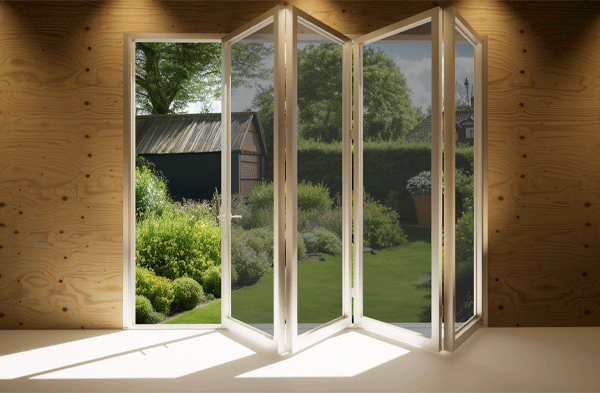

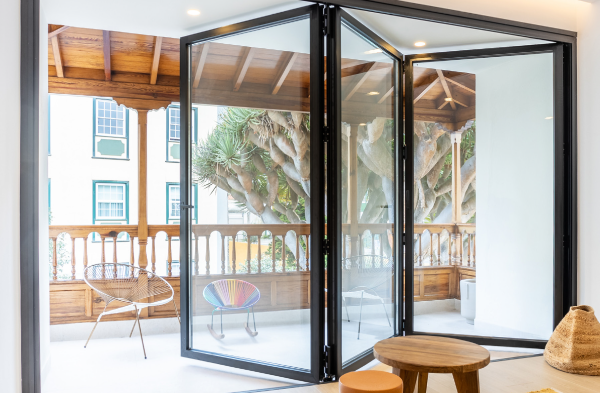

Separate environments and unify spaces with this Bi-fold door system with an 80 mm deep frame. This evolution of the Bi-fold series offers an excellent thermal and acoustic performance, thanks to its 45 mm thermal break and a glazing capacity up to 48 mm.

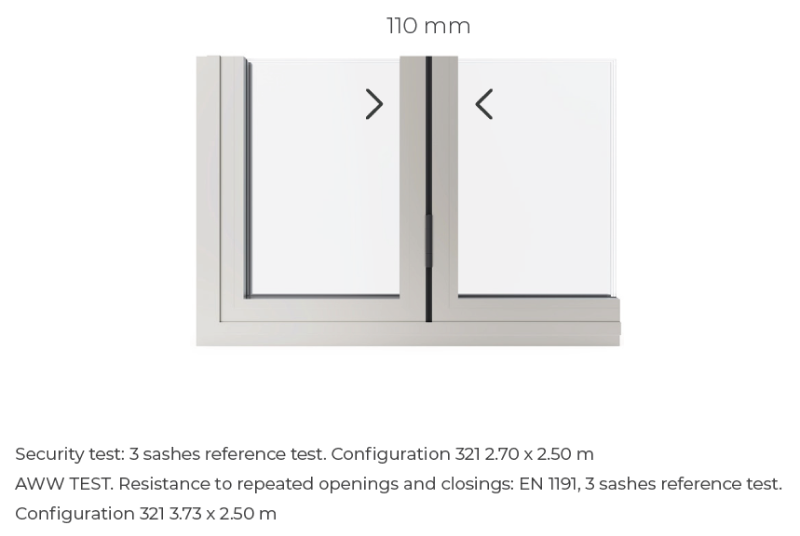

Besides, it presents a slim central section of 110 mm, which maximizes the glazed surface, filling the interior spaces with natural light.

  • High thermal & acoustic performance
  • Maximized glazed surface

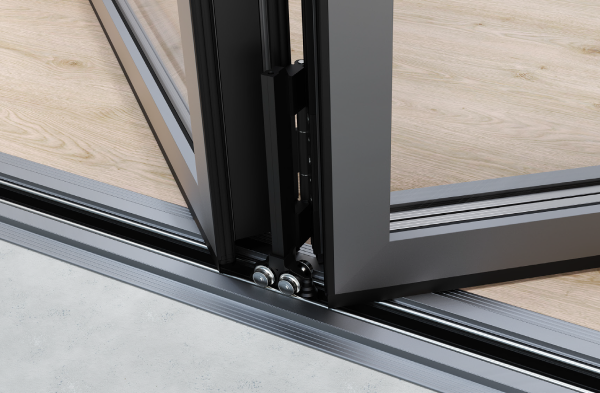

  • Double bearing system whith a gimbal stabiliser
  • Faster manufacturing
  • High security

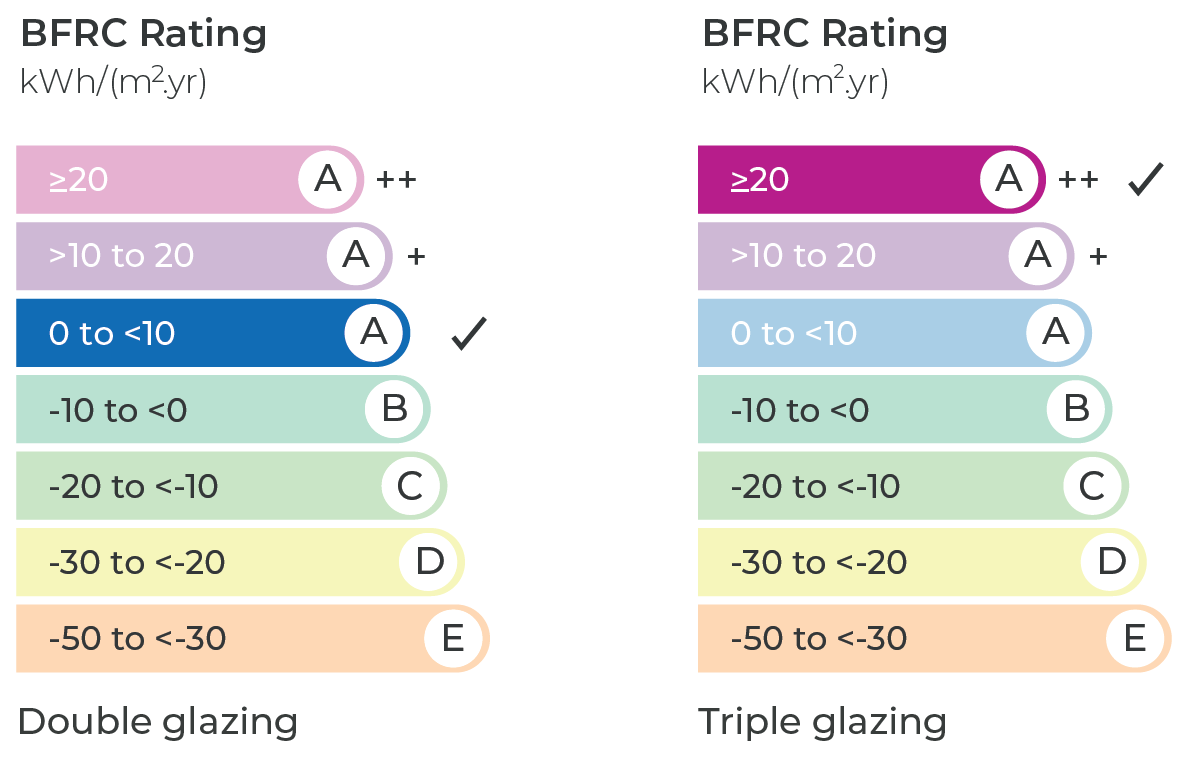

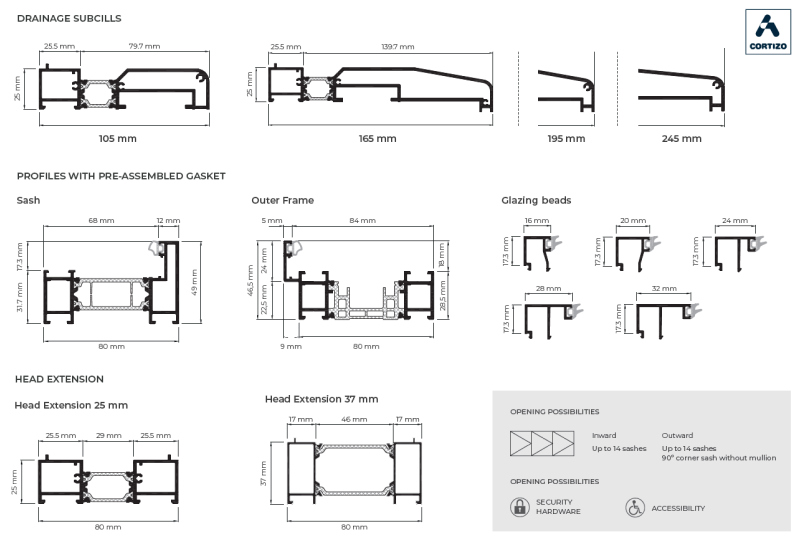

bfrc-rating diagram bfrc-rating security-test drainage-subcills

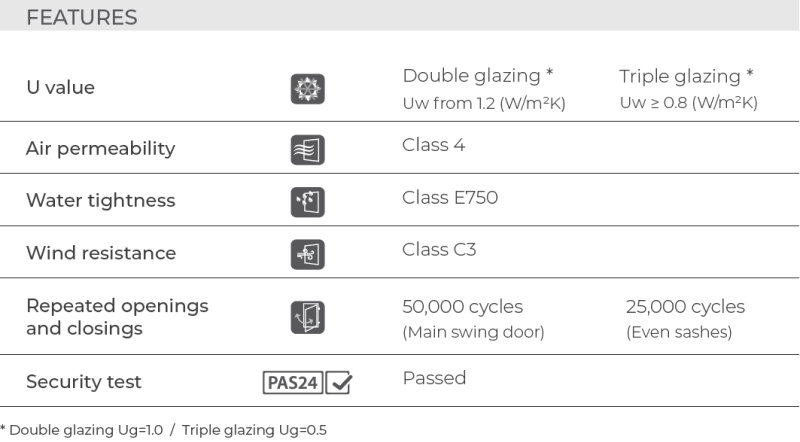

Specifications
U Value
Double Glazing

Uw from 1.2 (W/m²K)

Triple Glazing

Uw ≥ 0.8 (W/m²K)

Air Permeability
Class 4
Water Tightness
Class E750
Wind Resistance
Class C3
Repeated Openings & Closings
50,000 Cycles

(Main swing door)

25,000 Cycles

(Even sashes)

Security Test
Passed
