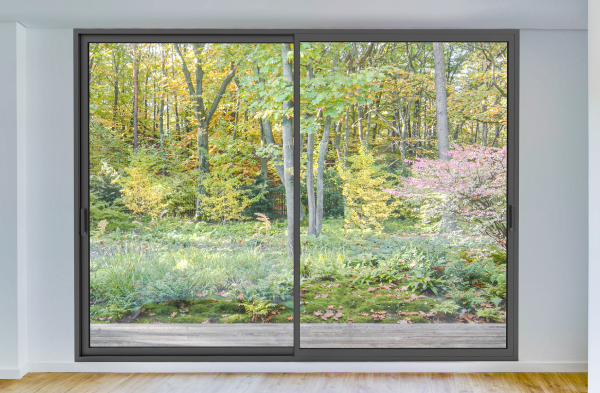

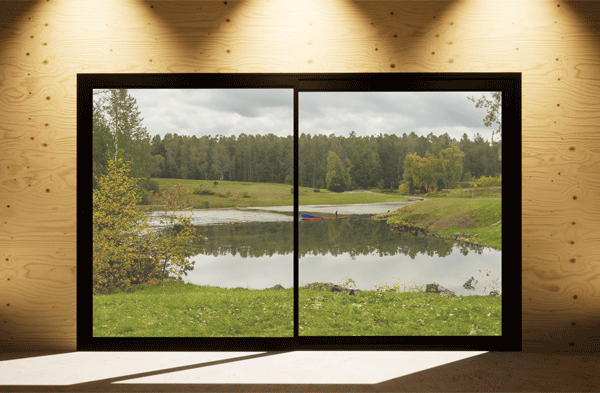

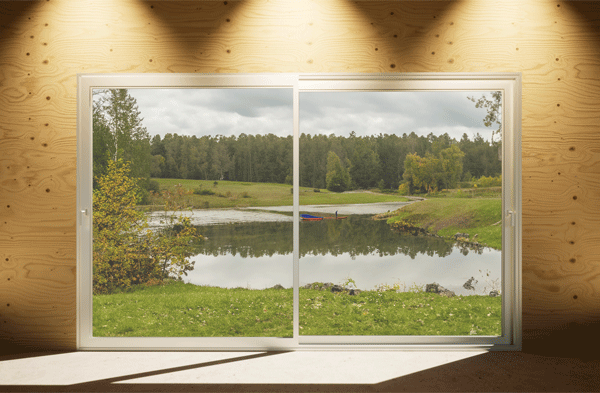

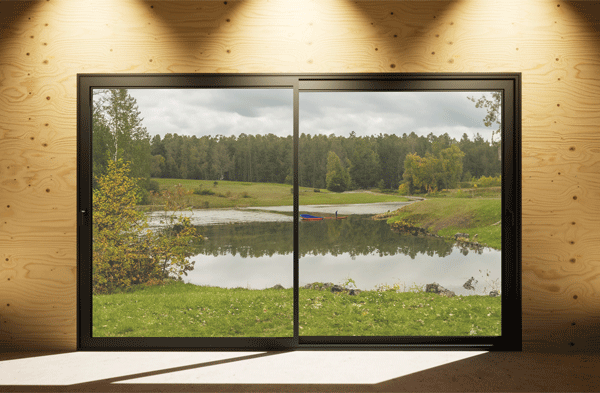

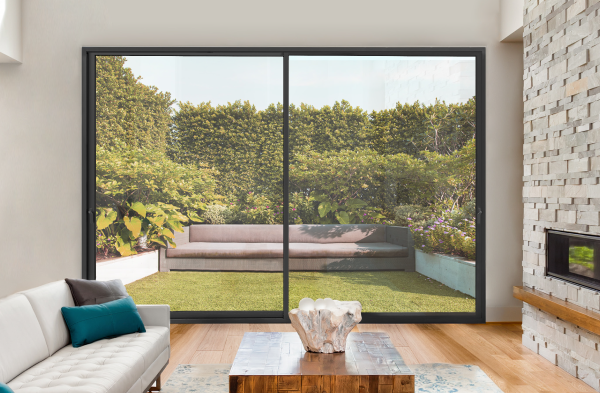

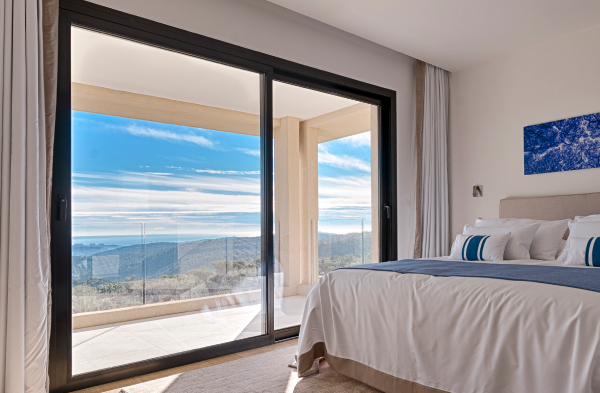

1st image of 4700 Sliding 2nd image of 4700 Sliding 3rd image of 4700 Sliding Black render of 4700 Sliding Grey render of 4700 Sliding White render of 4700 Sliding
Selection image of 4700 Sliding Selection image of 4700 Sliding Selection image of 4700 Sliding

4700 SLIDING

Colours
Colours
Technical Details

Click here to check out more in-depth specifications and our PDF for this product.

4700 SLIDING
DOWNLOAD PDF

This sliding system, available both in-line slider and lift & slide versions, becomes an ideal solution for closing large spans. It presents modern aesthetics in straight lines, a reduced interlock section and large glazed surfaces that ensure bright and comfortable areas, due to its thermal and acoustic performance.

  • Up to 3 meters height
  • Maximized glazed surface
  • 47 mm interlock
  • Faster manufacturing
  • High security

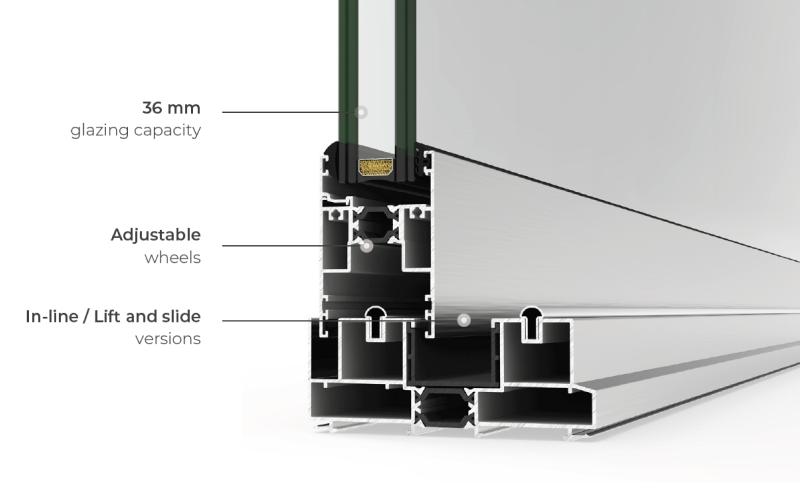

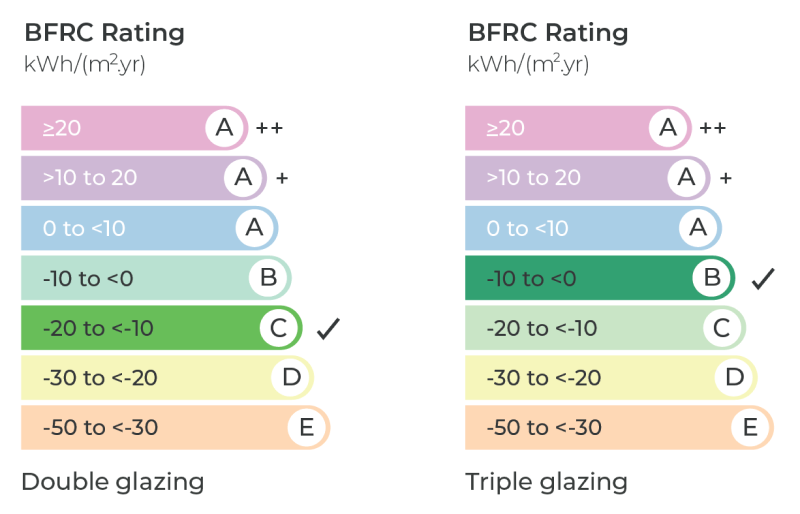

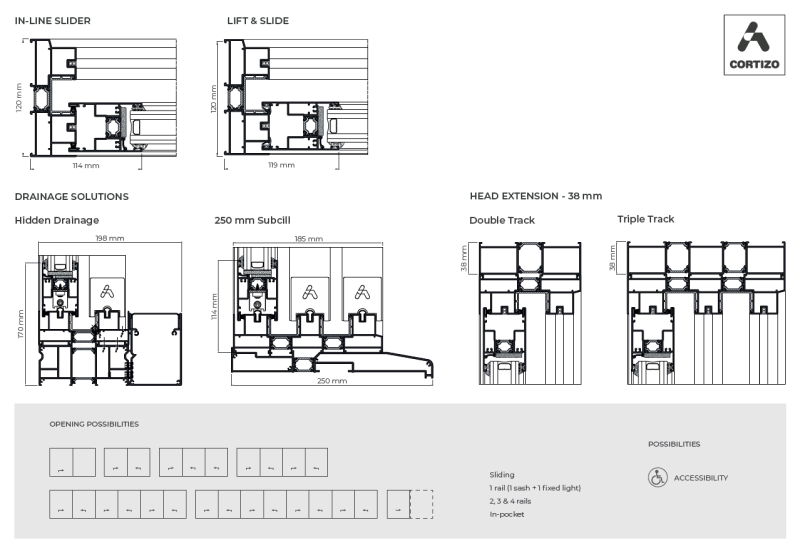

bfrc-rating diagram bfrc-rating security-test drainage-subcills

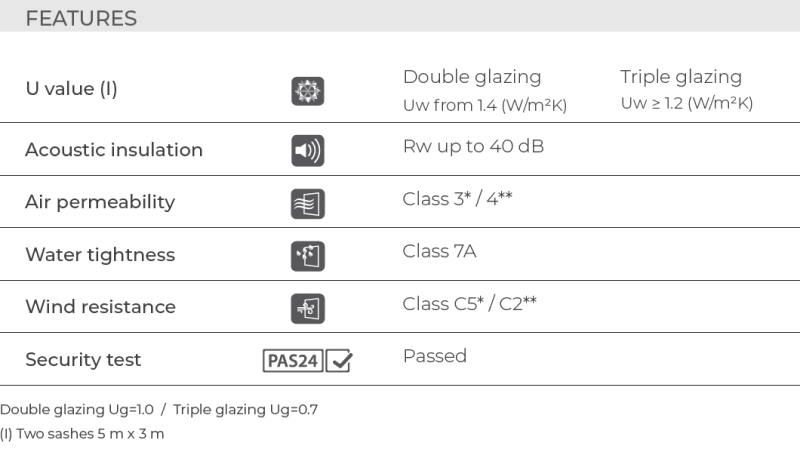

Specifications
U Value
Double Glazing

Uw from 1.4 (W/m²K)

Triple Glazing

Uw ≥ 1.2 (W/m²K)

Acoustic Insulation
Rw up to 40 dB
Air Permeability
Class 3* / 4**
Water Tightness
Class 7A
Wind Resistance
Class C5* / C2**

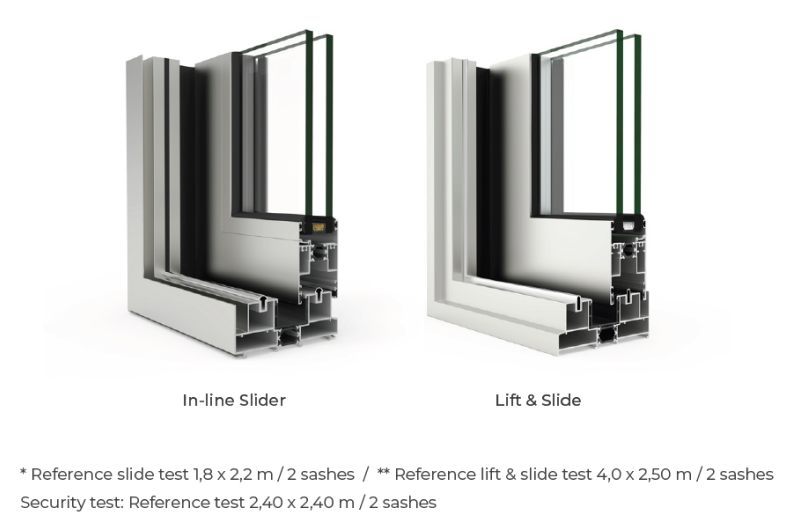

Security Test
Passed
U Value
Acoustic Insulation
Air Permeability
Water Tightness
Wind Resistance
Security Test
