COR VISION PLUS
- Frame depth 180 mm / 278 mm 3 rails
- Sash depth 69 mm
- Interlock 25 mm
- Frame 40 mm
- Sash 18 / 32 mm
- Door 2.0 mm
- Max. 56 mm, Min. 36 mm
- Width (L) 4000 mm, Height (H) 4000 mm
- 400 kg Manual
- 700 Kg Motorized
The greatness of minimalism is reflected in this sliding system of
large dimensions with sashes of up to 4 meters, interlock sightline
of only 25 mm and frames embedded in the perimeter, allowing for a
glazed surface of up to 94%. It has a maximum glazing capacity of 56
mm, offering excellent
Thermal and acoustic performances. Available with manual (up to 400
kg) or motorized (up to 700 kg) opening system. Additionally,

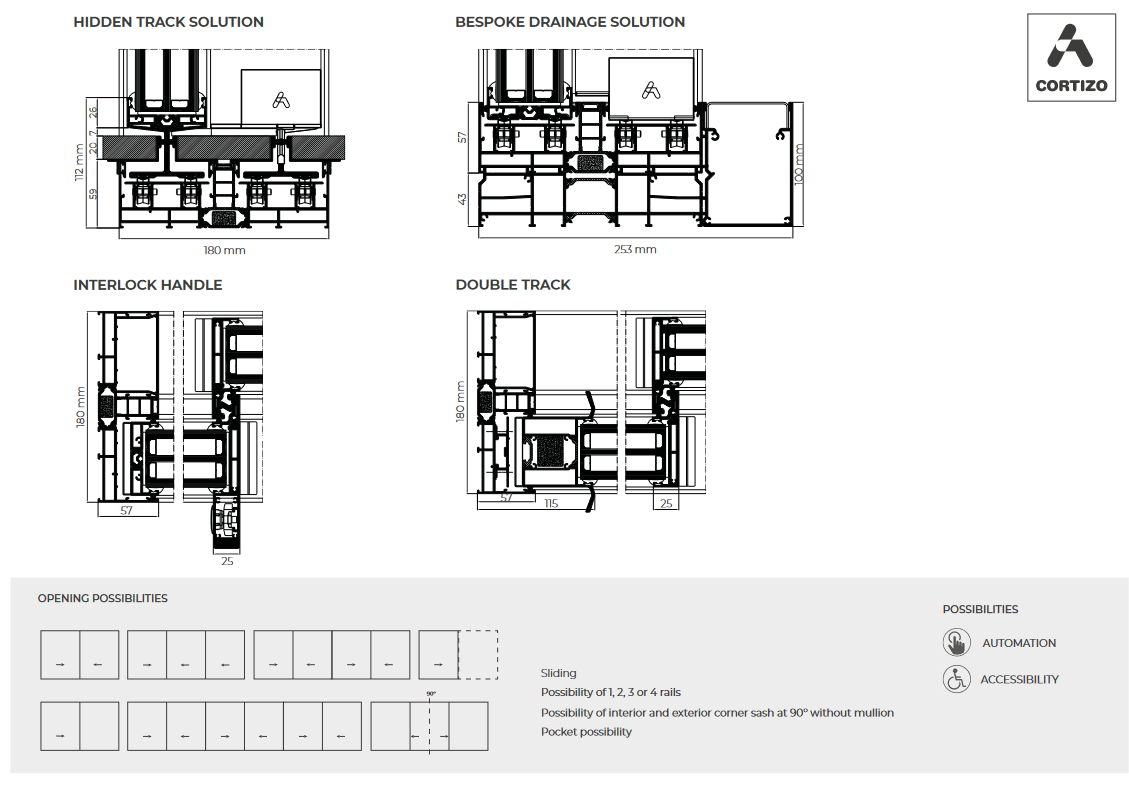

accessibility is favoured by the possibility of hiding the rail and
even integrating it fully into the floor.

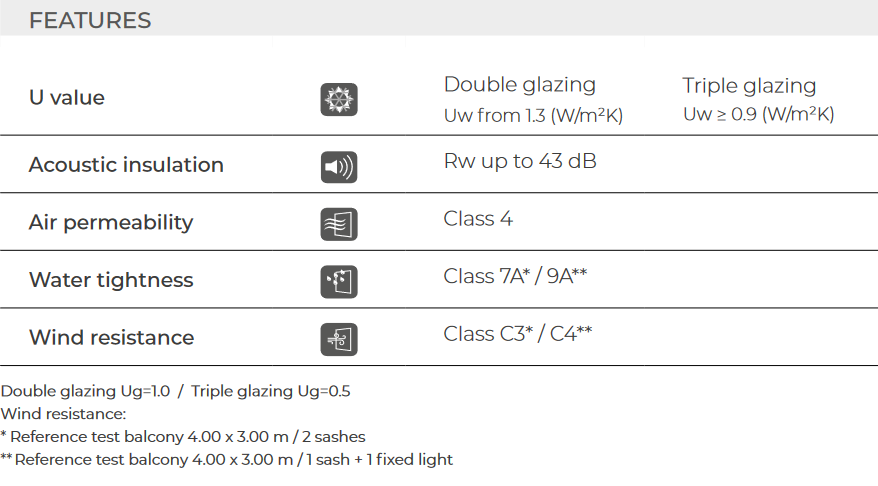

Uw from 1.3 (W/m²K)
Uw ≥ 0.9 (W/m²K)
