COR 70

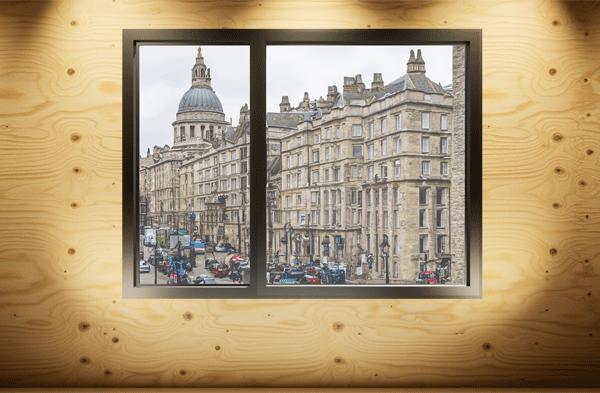

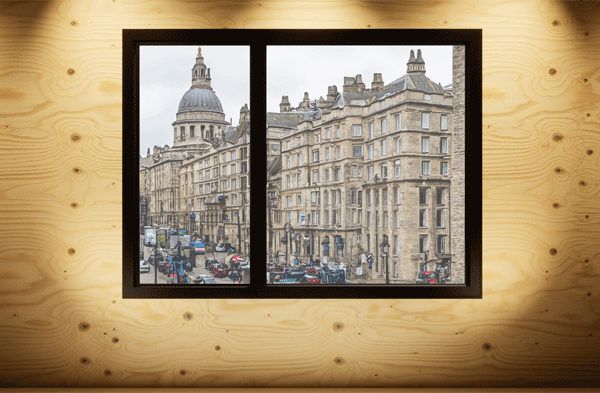

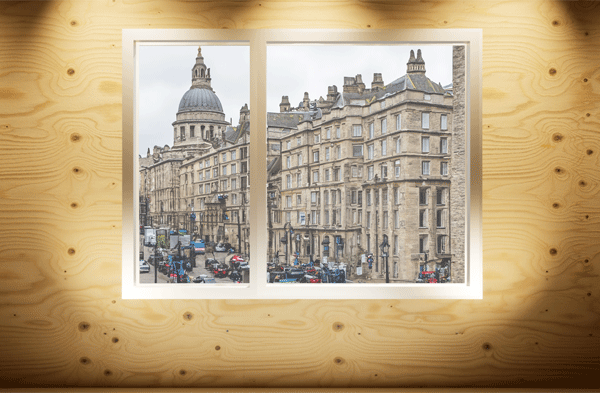

Colours
Colours
Technical Details

Click here to check out more in-depth specifications and our PDF for this product.

COR 70
DOWNLOAD PDF

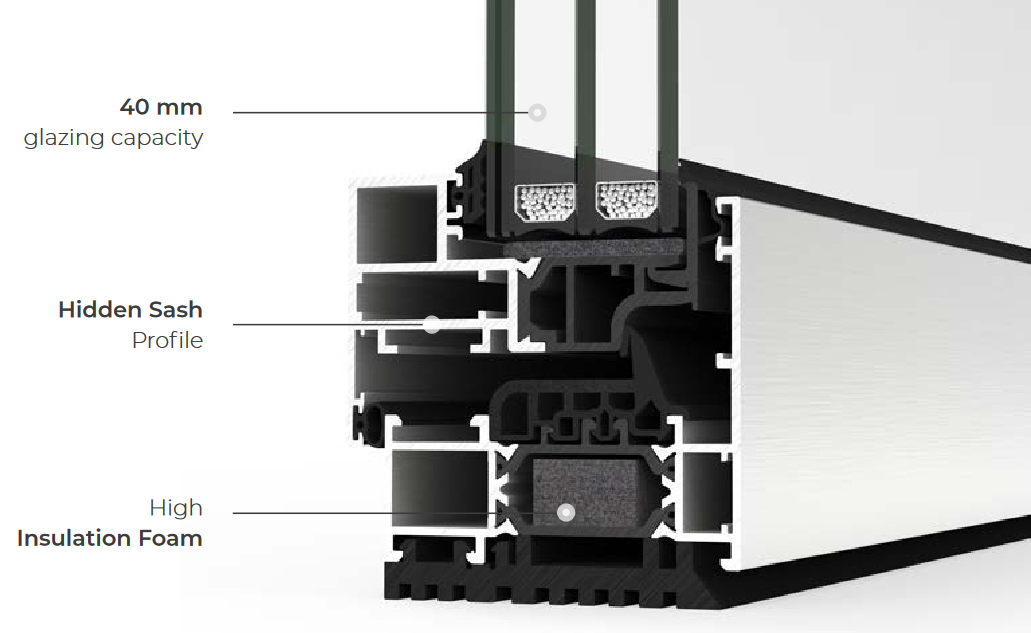

It could be a painting, but is a window. This is how we can describe the COR 70 Hidden Sash which, like the 80 mm version, has a sightline of only 66 mm and allows the incorporation of the ARCH INVISIBLE handle, concealed hinges and the drainage solution. Any element that breaks the visual harmony of the ensemble is discarded.

  • High thermal & acoustic performance
  • Slim sightlines
  • Hidden handle and concealed hinges available
  • High security
bfrc-rating diagram bfrc-rating security-test drainage-subcills

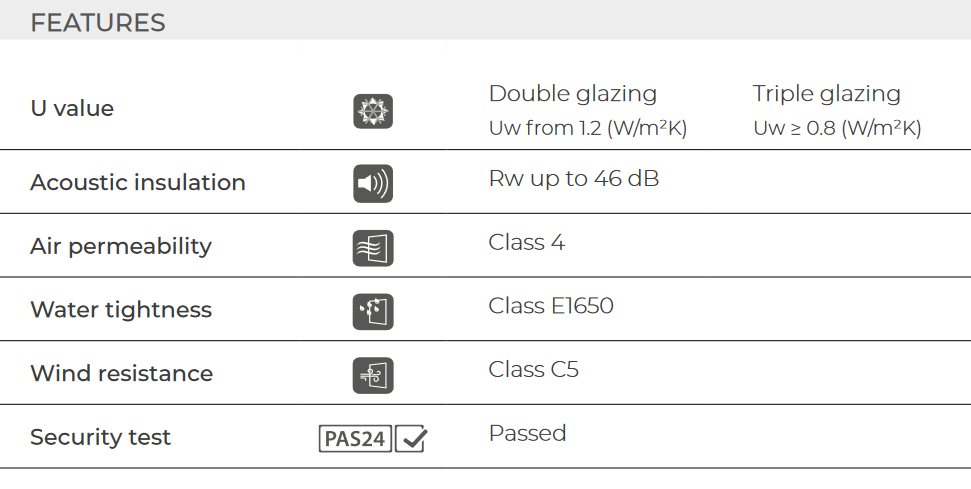

Specifications
U Value
Double Glazing

Uw from 1.2 (W/m²K)

Triple Glazing

Uw ≥ 0.8 (W/m²K)

Acoustic Insulation
Rw up to 46 dB
Air Permeability
Class 4
Water Tightness
Class E1650
Wind Resistance
Class C5
Security Test
Passed
U Value
Acoustic Insulation
Air Permeability
Water Tightness
Wind Resistance
Security Test
